Technical
Welcome to our Windows Technical Specification page, your go-to resource for detailed information on ECOSlide® Elegant Sash Windows. Whether you're an installer, an architect designing a new project, or a contractor looking for precise product details, this page provides the essential specifications you need. From material information and energy efficiency ratings to installation guidelines and performance standards, our goal is to help you make informed decisions for both residential and commercial applications.
Here, you'll find in-depth resources covering frame materials, glazing options, insulation properties, and industry certifications to ensure compliance with building codes and energy efficiency standards. Whether you're looking for the durability of aluminum, the classic appeal of wood, or the efficiency of double-glazed glass, our technical specifications will guide you through the selection process.
Window Energy Rating
ECOSlide®
windows have been subjected to Window Energy Rating simulation calculations by an approved British Fenestration Ratings Council (BFRC) simulator.
Thermal Inserts manufactured from 100% recycled PVC-U are inserted in the factory to enhance the thermal performance of the windows. These multi-chambered extruded inserts are much more thermally efficient than traditional steel bars, whilst also being lighter and providing better fixing screw retention during window installation.
Rigorously tested sash windows
Independently tested at a UKAS test house the ECOSlide® sash window has been evaluated in accordance with BS.6375 Part 1 “Performance of Windows: The figures achieved indicate that the tested Weather Performance Rating for the ECOSlide® vertical sliding PVC-U sash windows will meet “Severe” weather conditions.
|
Test Method &
Classification Standard
|
Achieve Max.
Test Pressure
|
Classification | |
|---|---|---|---|
| Air Permeability |
BS EN 1026:2006
BS EN 12207:2000
|
600 Pa | 4 |
| Water Tightness |
BS EN 1027:2000
BS EN 12208:2000 |
300 Pa | 7A |
| Wind Resistance |
BS EN 12211:2016
BS EN 12210:2016
|
1200 Pa | C2 |
| Classification according to Table 1 of BS 6375-2:2015+A1:2016 |
|||

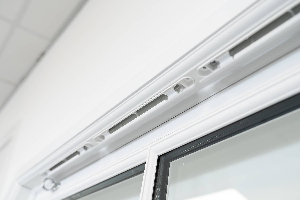

Trickle Vents
Architects, housebuilders and the government are paying increasing attention to ventilation – which is vital to reducing the likelihood of mould and condensation.
To comply with the requirements of Part F of Building Regulations, which governs ventilation, ECOSlide® comes with the maximum number of trickle vents as standard.
If implemented poorly, trickle vents can ruin the appearance of a window. However, thanks to an ingenious design, ECOSlide®’s trickle vents are concealed, allowing the product to achieve Part F standards without spoiling its heritage aesthetics.
